TK15 series manual-tilt CNC rotary table
Keywords:
TK15 series manual-tilt CNC rotary table
- Product Description

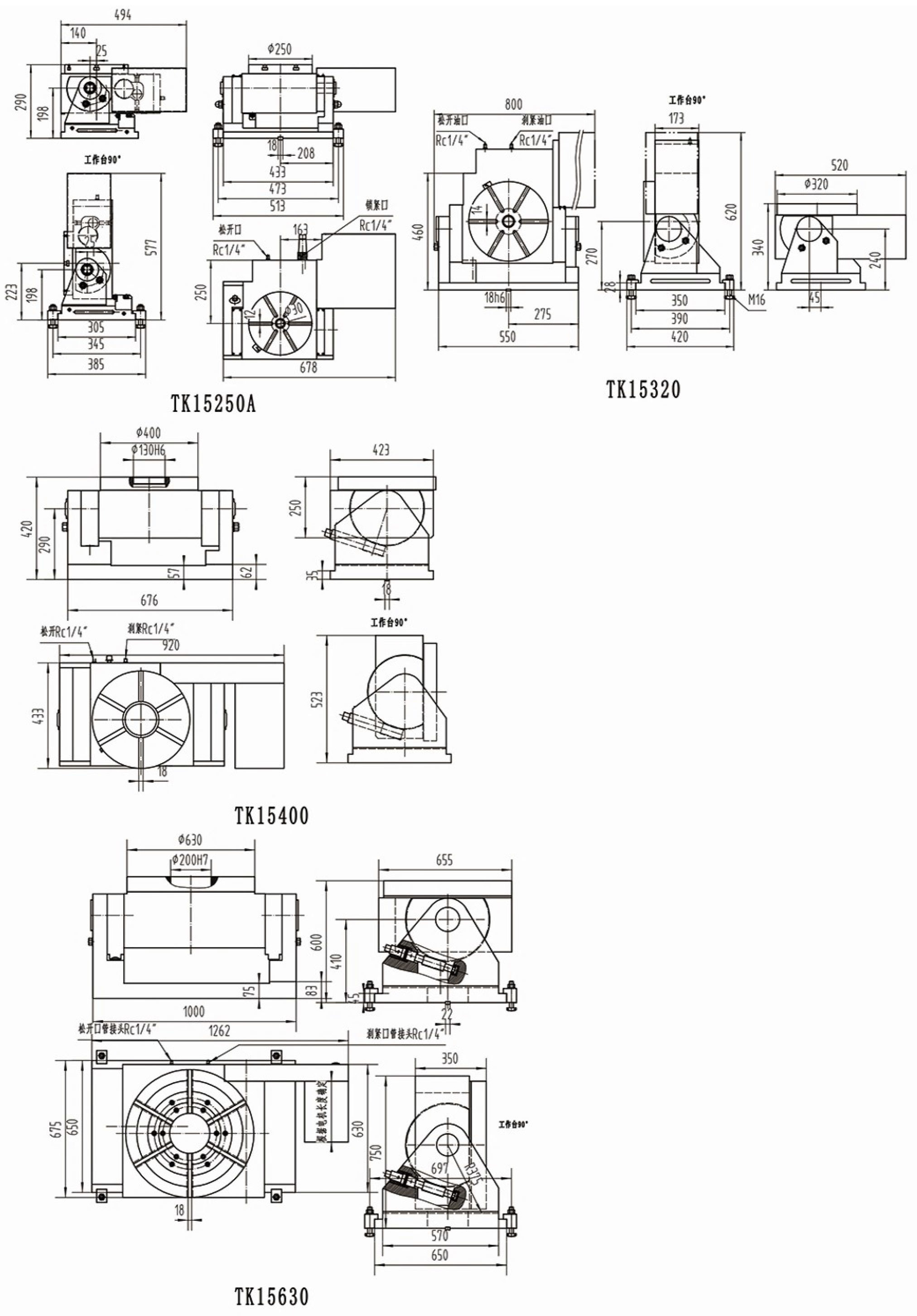

- Product Dimension Drawing
-
- Commodity name: TK15 series manual-tilt CNC rotary table
The TK15 series manual tilting CNC rotary table is mainly used on machining centers and CNC boring and milling machines as the fourth rotary axis of the main machine, completing the machining of holes, slots, planes, curves, cams, and other elements at any angle on the workpiece, and can achieve high precision.
◎ Tilting 0-90°
◎ Dual-lead worm screw
◎ The rotating shaft is CNC arbitrary indexing
◎ For different angle drilling and milling processing
Specifications:
No.
Item
TK15250A
TK15320
TK15400
TK15630
1
Dia of tabler (mm)
ф250
ф320
ф400
ф630
2
Dia of center bore (mm)
ф30H6
ф40H6
ф130H6
ф200H7
3
Width of T-slot (mm)
14
14
14
18
4
Width of locating key (mm)
18
18
18
22
5
0° height of table
290
340
420
590
6
90° height of tilting axis
198
240
290
400
7
Ratio of rotation worm wheel
1:90
1:90
1:120
1:120
8
Total ratio of rotation axis
1:180
1:180
1:180
1:180
9
Ratio of tilting axis
1:90
1:90
1:120
1:90
10
Max speed (r/min)
11.1
11.1
11.1
11.1
11
Minimum increase
0.001°
0.001°
0.001°
0.001°
12
Tilting range
0～90°
0～90°
0～105 °
0～90°
13
Servo
Motor
FANUC
α 8iF/β 8is
α 8iF/β 12is
α 12iF/β 22is
α 12iF/β 22is
SIEMENS
1FK7063
1FK7083
1FK7083
1FK7084
MITSUBISHI
HF-154
HF-204
HF-204
HF-354
14
Dividing accuracy
30"
25"
20"
20"
15
Repeatability
6"
6"
6"
4"
16
Clamping force
(Nm)
0.6MPa
300
500
650
1500
1.5MPa
1000
1800
2000
4000
17
Loading
Kg
Hor100
200
300
800
Vert50
100
150
400
18
Max inertia(kg.m2)
3.2
5.5
10
60
19
Max driving torque (Nm)
300
500
910
4300
20
Weight (kg)
250
370
440
1940
-
